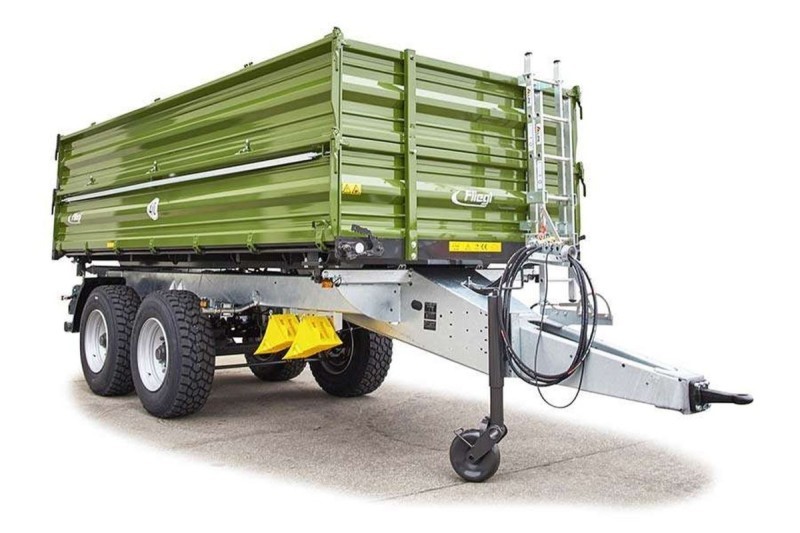

TDK 160 FOX Tandem three side tipper trailer
TDK 160 FOX Tandem three side tipper trailer | IN STOCK, LOW PRICE!
EUR 23 750 NET
EUR 22 750 NET
Call us now!
Main features
GK identifier:
VMFG2580613
Other
Specification:
40 km/h version with EC type-approval and COC papers (with mudguards, underrun protection and contour lights)
Total permissible weight 16 000 kg (axle group load 14 000 kg, support weight 2 000 kg)
Frame:
Professional chassis, galvanized
Platform 5000 mm x 2320/2220 mm (tapered), central locking right, left and rear, pluggable corner crates, full steel floor, rubber sealing all round, special profile design
Base sidewall 600 mm (tapered), concrete pipe, tensioning strap, steel sidewalls (sandblasted, primed and powder coated dark green), grain pan 400 mm x 230 mm
Front post 600 mm
Tengely:
Tandem running gear
Parabolic suspension Titan chassis
2 braked axles, both fixed
Wheels, mudguards:
Tyres 550/45-22,5 16 PR / load capacity 4 375 kg per wheel at 40 km/h
Traction:
Drawbar without spring, reversible, top linkage
DIN drawbar eye 40 d = 40 mm
Lighting:
2 five-chamber 12 V lamps, 7-pin socket and impact-resistant glass
front position lamps, white
Accessories:
2 wire air brakes with ALB
Heavy support wheel, foldable
Balancing cylinder 2 150 mm stroke, limit switch
Stopcock
The images used are for information purposes only and do not always reflect the actual equipment and condition of the machine, the information in the text description is authoritative. The description of the machine is not exhaustive. We reserve the right to make any typographical errors, mistakes and alterations.
